Antenna ports
4
Output power
Up to 5W
Sectors
2-4
Location
Full Outdoor
Local-area LTE micro base station

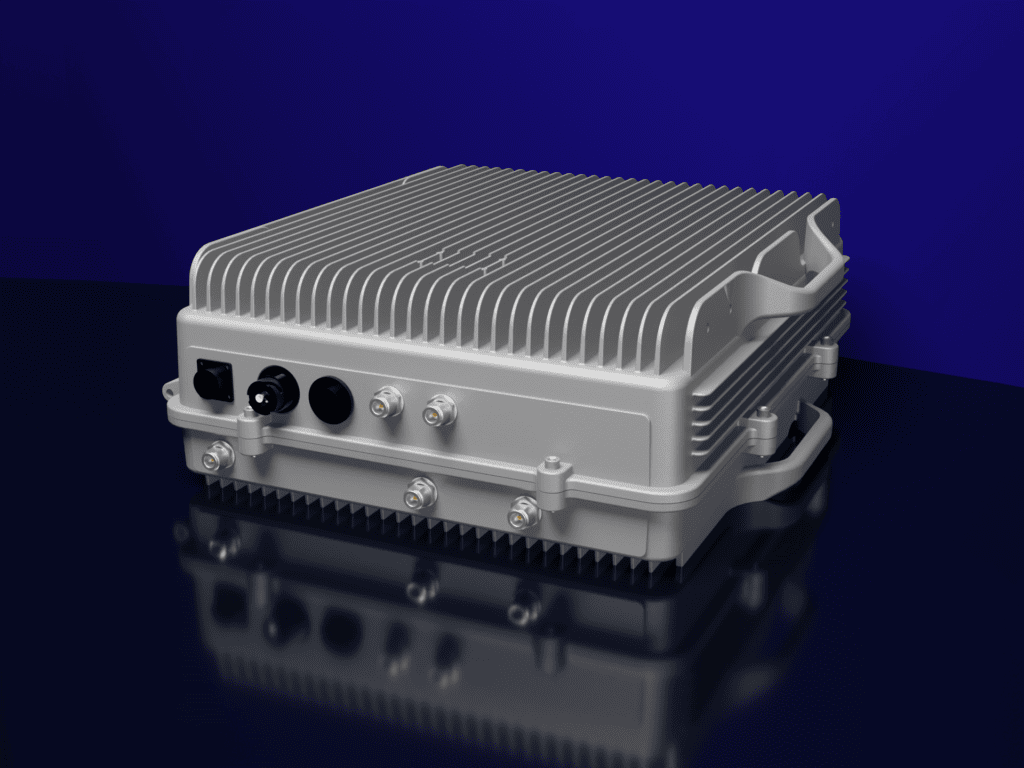

VergeCell 4300 is a compact base station (eNodeB) providing local wireless network coverage for 4G LTE data and voice. Its major advantage is the powerful baseband hardware platform that allows increased throughput number of sectors compared to competing solutions while maintaining compact external dimensions. These features make the VergeCell 4300 a cost-optimized solution, providing much needed capacity in private networks, where customers appreciate sufficient performance while maintaining compact physical dimensions.
Values
Large coverage while keeping compact dimensions
Friendly web interface for management and configuration
Easy installation
Outstanding system performance
Specifications
| Parameter | Value |
|---|---|
| 4G RAN technology | 4G LTE Advanced |
| Tx power | 4x 1-5W* |
| Operating bands | B31, B46, B47 |
| Sector configuration | 2 MIMO 2x2 sectors, 4 SISO sectors |
| Carrier aggregation | 20+20MHz per sector or 4x20MHz in one sector |
| Maximum throughput | 400/200Mbps DL/UL |
| Number of simultaneously operatingterminals (UE) | 512+ |
| Synchronization | GPS |
| Network interface | 1 x 10/100/1000Baset-T, 1 x SFP 1000Base-LX |
| Power | -48V DC |
| Operating temperature range | -35℃ ÷ +55℃ |
| Dimensions and weight | 500 x 475 x 200mm, 30kg |
