LTE eNB Analog Front-End (HAFE 3.6GHz)

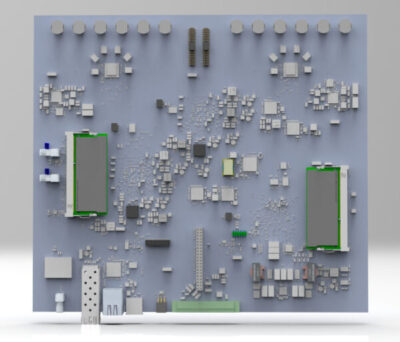

Fully-featured LTE microcell AFE PCB supporting 4 paths 3.6GHz capable of providing up to 20W avg. RF power per channel.
RF channels
4
RF tunning range
3.6 – 3.8GHz
RF power (avg)
Up to 20W
Duplex mode
TDD
Microcell Analog Front-End
This microcell Analog Front-End module for 3.6 ¸ 3.8GHz band ensures proper TX&RX signal conditioning prior to emitting it through antenna or further digital processing.. Thanks to modern architecture and Digital Pre-Distortion compatibility, it can bring high power efficiency without compromising signal quality. Moreover, embedded microcontroller allows for great flexibility in context of configuring and reprograming and conducts remote parameter monitoring.
Values
High RF power
Highly efficient Dhoerty PA
Small footprint
DPD ready
Specifications
| Parameter | Value |
|---|---|
| 3GPPP conformance | TS 36.104 v10 |
| RF range | 3600 / 3800MHz |
| RF inputs (towards RF TRX) | 4 Tx, 4Rx, 4 ORx |
| RF outputs (towards antenna filter) | 4 Tx/Rx |
| RF TX power (vg) | Up to 20W |
| Duplex | TDD |
| Monitoring | VSWR, temperature, reflected power |
